1. Map units from one vantage point
2. Collect rock pit and chip pile volume using the TruPulse 360 plus optional software
3. Determine distance, inclination, and azimuth between two points. (Missing Line routine)
4. Measure vertical angles
5. Determine compass bearings
6. Measure distances between plots
7. Traverse timber sales
8. Determine accurate offsets with GPS
9. Lay out roads in timber stands
10. Harvest unit layout
11. Identify hazard trees

• Distance: 0 to 3,280 ft; typical, 6560 ft max to reflective target
• Inclination: ± 90 degrees
• Azimuth: 0 to 359.9 degrees

• Distance: ± 1ft (± 30 cm) typical ± yd (± 1m) to low quality targets
• Inclination ± 0.25 degrees
• Azimuth ± 1degree typical

• Standard
• Closest
• Farthest
• Continuous
• Filter (reflector only)

Atterbury Consultants sets the units to feet, measurement mode to 'farthest', and recalibrates the inclinometer (and compass on the TruPulse 360) if necessary prior to shipping.

Laser Rangefinders

The TruPulse series laser rangefinder offers compact technology with ease of use. The 8 ounce laser can accomplish most tasks with one, two, or three clicks of the fire button. When measuring tree heights in height mode, the routine prompts the user to take one distance measurement and two angle measurements. The height is immediately displayed inside the optics. This small laser rangefinder makes most measurement tasks fast and easy.

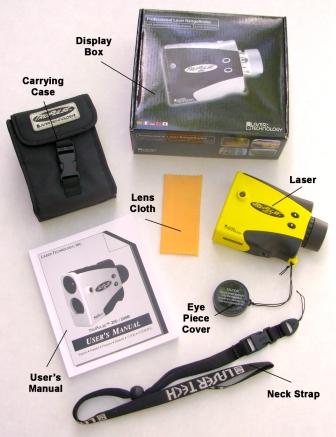

The TruPulse laser rangefinder comes in different configurations.

• Distance (Horizontal, Vertical, Slope)
• Inclination (Degrees and Percent Slope)
• Height (Flexible three-shot routine)

TruPulse Specification Sheet

• Distance (Horizontal, Vertical, Slope)
• Inclination (Degrees and Percent Slope)
• Height (Flexible three-shot routine)
• Azimuth (Compass Bearing for single-shot positioning)
• Missing Line (Distance, Inclination and Azimuth between any two remote points)
• Integrated Bluetooth

TruPulse 360 Laser Rangefinder Calibration Movie

The TruPulse Foliage Filter fits over the bottom lens and allows the user to shoot distances in brushy situations where a normal shot would be difficult to make. When the foliage filter is attached and the TruPulse is in "Filter Target Mode", distances of up to 300 feet can be measured. The unit will return either an accurate measurement or no reading. The foliage filter works well with reflective tape and bicycle type reflectors.

The foliage filter can be used to allow a single person to traverse an area. The user can pin reflective tape on trees and then takes back shots in filter mode to get distance (and direction with the TruPulse 360) to the reflective tape. The quality of the reflective tape does affect the distance at which the filter will work. It is common to be able to have shots of 100 feet or more with high quality reflective material. A TruPulse 360 equipped with a foliage filter and some squares of reflective tape can be an efficient method for determining the acres of an area.

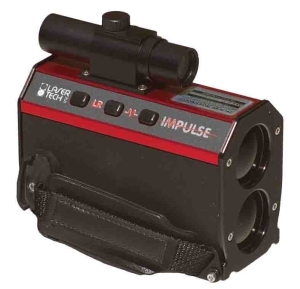

The Impulse 200 is UNAVAILABLE.

• LCD panel and a serial port for measurement readouts
• Non magnifying red dot scope for target acquisition.
• Accurate to one tenth of one foot +/- 1.2"
• Calculates horizontal or slope distance in less than a second.
• May be used with optional MapStar Compass or Angle Encoder
• Waterproof to one meter

Impulse series specification sheet
